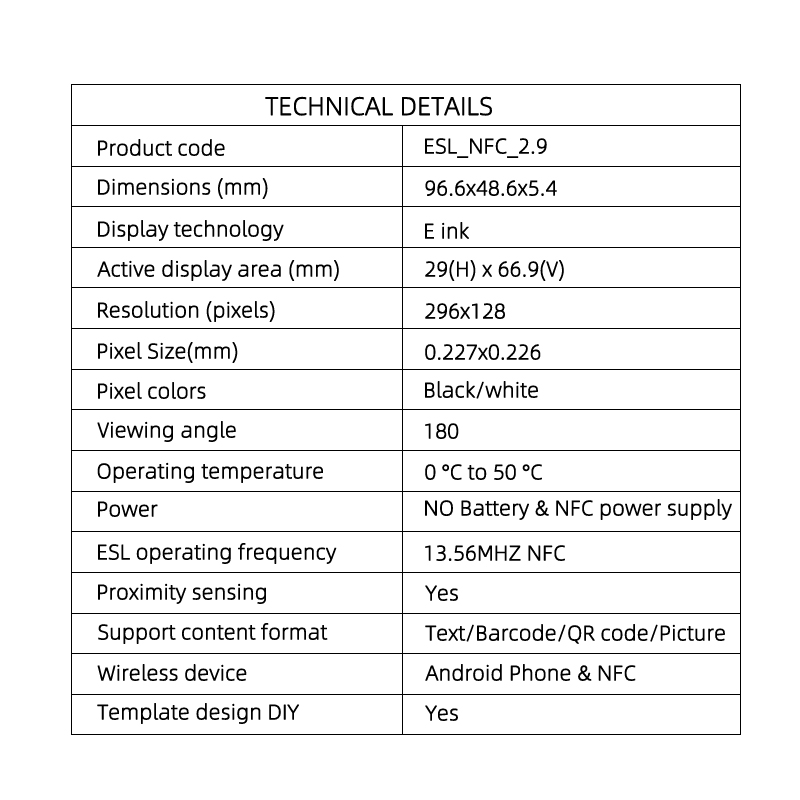

Product parameters:

Product features:

1. NFC card is a passive ultra-thin card that does not require power supply, has a refresh rate of over 1 million times, and has an ultra long service life;

2. Unique fast scanning technology, intelligent NFC sensing tags, and fast refresh in seconds;

3. Support content formats: text/barcode/QR code/image;

4. Pop up the editing interface, template design can be DIY, and more templates can be freely switched;

5. Ultra thin shell, size: 85.8 * 41 * 2.9mm;

6. Support data docking and use dedicated card readers;

7. IP66 waterproof and dustproof structure design, more secure;

8. Equipped with status prompt LED to ensure usage certainty;

9. Customers can develop their own apps, and we provide an agreement.

NFC ESL Solution:

The NFC tag is connected to the server and controller through a dedicated card reader device. The customer sends instructions to the controller, which transmits data through a dedicated card reader device, and the label content will be immediately updated.

NFC ESL Work Plan:

Solution ① Cloud NFC solution (software+V2.4 label controller+card reader+NFC card): suitable for any scenario.

Solution 2: Local NFC Solution (V4.4 Label Controller+Reader+NFC Card): The V4.4 Label Controller is an integrated server and software device that can be directly connected to the local network without the need for software installation, making it very simple and convenient to install locally. It is suitable for testing, small scenes: shops, bakeries, shops, pharmacies, etc.

Solution ③ Mobile NFC Solution: The customer develops their own application to control the NFC card, and we will provide a protocol.

NFC ESL usage:

1. We provide protocols to develop our own mobile apps;

2. We provide a card reader+card reader data protocol, which allows us to send data through the upper computer serial port ourselves;

3. We provide a controller and card reader to operate and modify content on computer web pages, ensuring flexible use. Without any development, we can operate and swipe card content on web pages;

4. The device sends instructions through network interface protocols for operation, achieving system docking and automated card swiping (data from your server).
