Warehouse Pick To Light System is a kind of advanced light guiding technology, which replaces the picking list with a complete set of electronic display devices (such as signal lights, displays, confirmation buttons) on the shelf space to increase the working efficiency of the warehouse or distribution center. It is a paperless, efficient and cost-effective solution.

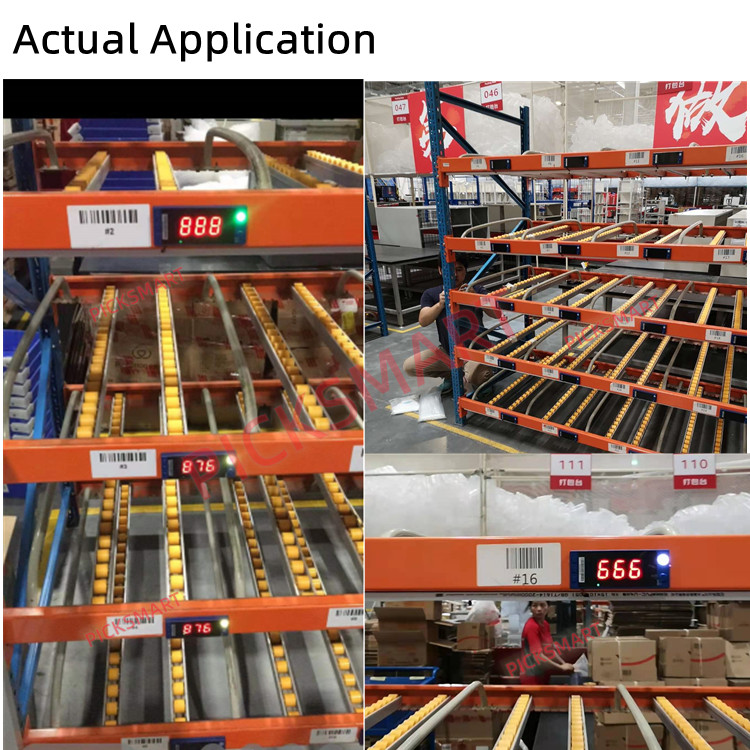

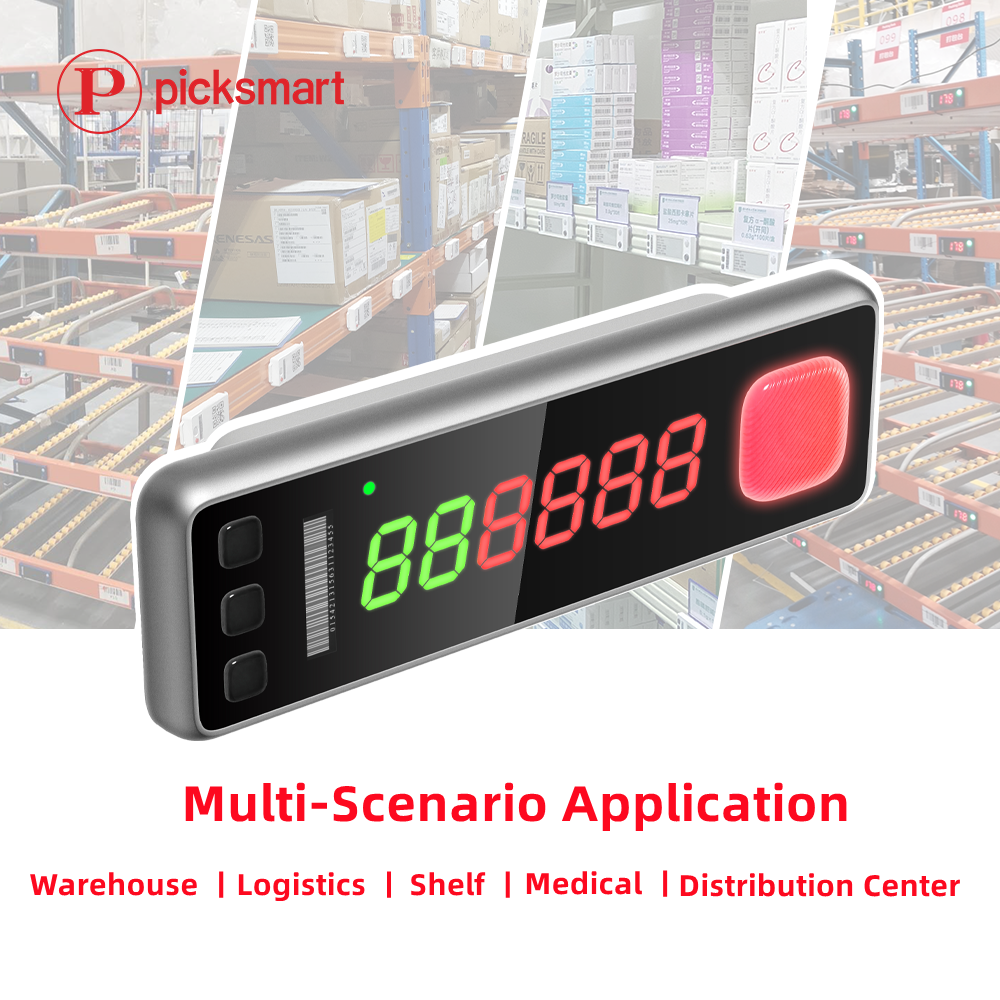

Picksmart Pick To Light System has been successfully applied to e-commerce,logistics,electronics,daily chemical, medicine, clothing,precision hardware, auto parts, packaged food, printing, jewellery, fresh cold chain,retail distribution industries, as far as relate to material picking ,sorting and circulation control, all can be good to solve by pick to light system, and it also can seamless docking enterprises's ERP, WMS, MES system, improve efficiency, prevent mistakes.
Item |
Value |
Product Name |
Warehouse Picking Tag |
Model |
CK_Label_v20 |

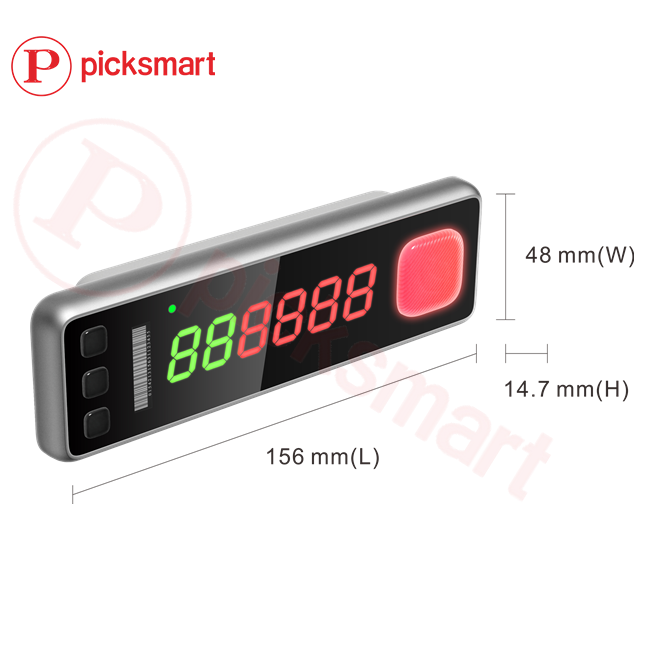

Appearance of Size |
156x48x14.7mm |
Screen Display |
Digital tube display 6-digit 0.8 inches |
Indicator Light |
1 RGB Colorful indicator lights |
Button |
4 |
Communication Mode |
Wireless 868MHz |
Power |
DC 24V |
Working Temperature |
-10-65℃ |
Communication Equipment |
Controller: PICK_Controller_V1.4/PICK_Controller_V1.2 |

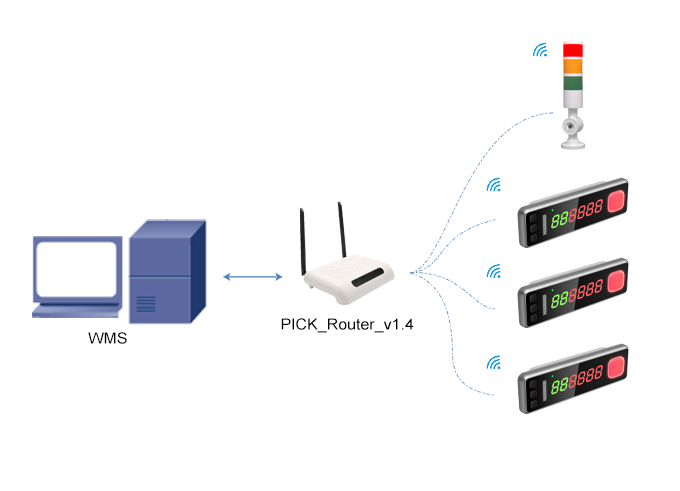

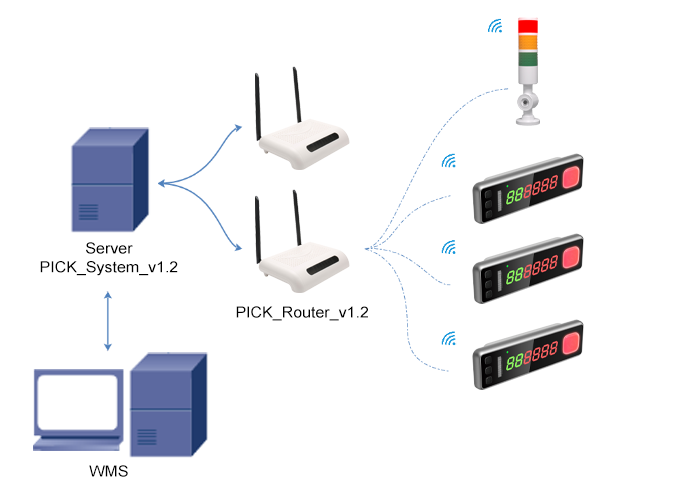

1.Data Source: The existing WMS system, ERP, MIS, etc. or manually inputting the information
2.Label Controller:Using to download the orders or receive instructions from WMS and send information to the picking tags through the wireless network frequency 868MHz, and feed back the status information of the tag to the WMS. It is a Two-way transmission way.
3.Picking Tag:used to display the goods info, Bar code,quantity and send out indicating info.
4.Alarm Light:used in the working area to prompt the task to be done in the area.
Picksmart is a global leading solution provider of intelligent hardware products and system, and is able to make independent R&D and innovation, software and hardware solution integration, and resources integration of the whole industry chain.Our Headquarter is in Shenzhen, China. Our businesses mainly focus on supermarket, retail, warehouse, medical and so on. Following the diversified development of retail industry, Picksmart had a deep insight base on the digital revolution of retail industry and internet field, insists our core motivation on innovation and R&D, provides our superio solutions and services, and helps our customers to build their core competence.At present, Picksmart has developed its Smart ESL with the carrier of wireless IoT, with the special service and product of smart warehouse management system. Especially, it has gained a lot of experience on low power consumption wireless applications.Picksmart takes innovation as motivation, takes market as orientation, takes efforts to build a special and core competitive Hi-tech enterprise.
Our Services & Strength ESL
Picksmart has developed its Smart ESL with the carrier of wireless IoT, with the special service and product of smart warehouse management system. Especially, it has gained a lot of experience on low power consumption wireless applications.
We are good at low power system integration.
OEM is supported
ODM is supported
