1. Query PTL Tags Information
Introduction to the API：Query all PTL tags information
Basic Information：
| Attributes | Interface Message |
| Status | Finished |
| URL | http://localhost/wms/associate/getTagsMsg |
| Request Method | GET/POST |
| Content-Type | multipart/form-data |
Request parameters：
Parameter Description：
| Attributes | Value | Required | Comment |
Response parameters：
| Attributes | Value | Types | Comment |
| lastOpreateTime | "2021-10-13 03:32:30" | string | Last opreate TIme |
| mac | "99.97.36.55" | string | Tag mac/Tag ID |
| power | 100 | string | Battery power(0~100) |
| routerid | CWR000001 | string | ID of BindRouter |
| rssi | -26 | int | Signal strength (-100 ~ 0) |
| showStyle | "Picking Template" | string | Using template name |
Response example：
[
{
"lastOpreateTime": "2021-10-13 03:32:29",
"mac": "99.97.36.55",
"power": 100,
"routerid": "CWR000001",
"rssi": -30,
"showStyle": "Picking Template"
},
{
"lastOpreateTime": "2021-10-13 03:32:30",
"mac": "99.97.36.53",
"power": 100,
"routerid": "CWR000001",
"rssi": -26,
"showStyle": "Picking Template"
},
{
"lastOpreateTime": "2021-10-13 03:32:33",
"mac": "99.97.36.48",
"power": 88,
"routerid": "CWR000001",
"rssi": -39,
"showStyle": "Picking Template"
}
]
2. Update PTL Screen display
Introduction to the API：Update PTL Screen display
Basic Information：
| Attributes | Interface Message |
| Status | Finished |
| URL | http://localhost/wms/associate/updateScreen |
| Request Method | POST |
| Content-Type | application/json |
Parameter Description：
| Attributes | Types | Required | Comment |
| mac | string | yes | Tag mac / Tag ID |
| styleid | int | yes | Template ID |
| outtime | int | Yes | Lighting timeout time(s);0 : never turn offn : turn off autoAutomatically after n seconds |
| ledstate | int | Yes | lightint mode;0, always on1, quick flash2, slow flash3, turn off 6, backlight and rgbled both onn, flashing as period n(ms) |
| ledrgb | string | Yes | led color:red，ledrgb =“ff0000”;green，ledrgb=“ff00”;blue，ledrgb=“ff”;yellow，ledrgb=“ffff00”;white，ledrgb=“ffffff”;pueple，ledrgb= “ff00ff”;light blue，ledrgb= “ffff”;no color, ledrgb=“0” |
| cmdtoken | string | optional | Extended parameters, it can use for token or taskid |
| LGPLA | string | optional | Filed created in template |
| MATNR | string | optional | Filed created in template |
| STOCK | string | optional | Filed created in template |
| MENGE | string | optional | Filed created in template |
| QRCODE | string | optional | Filed created in template |
Raw example：
[
{
"mac":"99.96.19.66",
"styleid":35,
"ledrgb":"ff00",
"ledstate":0,
"outtime":0,
"LGPLA":"***",
"MATNR":"***",
"KNMAT":"***",
"STOCK":"***",
"BATCH":"***",
"MENGE":"***",
"QRCODE":"***",
"Inventec":"***"
},
{
"mac":"99.96.19.65",
"styleid":35,
"ledrgb":"ff00",
"ledstate":0,
"outtime":0,
"LGPLA":"***",
"MATNR":"***",
"KNMAT":"***",
"STOCK":"***",
"BATCH":"***",
"MENGE":"***",
"QRCODE":"***",
"Inventec":"***"
}
]
Response example：true
Note: The fields parameters are according the according to the template you used. This API does not support lighting Leds of Multi-led PTL(External power supply version) , only refreshing the screen
Introduction to the API：
Notification the update result of PTL
Basic Information：
| Attributes | Interface Message |
| Status | Finished |
| URL | URL of user's callback API |
| Request Method | POST |
| Content-Type | application/json |
Request parameters：
Parameter Description：
| Attributes | Types | Required | Comment |
| mac | string | yes | Tag mac / Tag ID |
| power | int | yes | Battery power(0~100) |
| result | bool | Yes | True ：ok；False: failed； |
| cmdtoken | string | optional | Return the cmdtoken passed in the call request |
| lednum | string | optional | No use |
| message | int | Yes | 数据成功；(send ok)数据失败；(send failed)数据发送超时；(send timeout)唤醒失败；(wake up failed)基站不在线；(router offline)数据异常；(Abnormal data)数据格式不正确，解析失败；(incorrect data format)参数格式不正确或参数不全;(Missing required parameters)无法执行;(Unable to execute)标签不存在；(Tag does not exist) |
Parameters example：
{"cmdtoken":"1634826092022","lednum":0,"mac":"99.26.99.36","message":"数据成功","power":100,"result":true}
4. Callback of button event
Introduction to the API：Notification of button event.
Basic Information：
| Attributes | Interface Message |
| Status | Finished |
| URL | URL of user's callback API |
| Request Method | POST |
| Content-Type | application/json |
Request parameters：
Parameter Description：
| Attributes | Types | Required | Comment |
| mac | string | yes | Tag mac / Tag ID |
| result | bool | Yes | result=0，right-lower button；result=1，left-top button；result=2，left-middle button；result=3，left-lower button； |
Parameters example：
Json object
{"mac":"92.91.34.99","result":1}
5. Light Leds of PTL(Battery power supply)
Introduction to the API：Query all PTL tags information
Basic Information：
| Attributes | Interface Message |
| Status | Finished |
| URL | http://localhost/wms/associate/lightTagsLed |
| Request Method | POST |
| Content-Type | application/json |
Request parameters：
Parameter Description：
| Attributes | Types | Required | Comment |
| mac | string | yes | Tag mac / Tag ID |
| outtime | int | Yes | Lighting timeout time(s);0 : never turn offn : turn off autoAutomatically after n seconds |
| lednum | int | Yes | Specify the number of Leds (1,2,3,4) |
| ledstate | int | Yes | lightint mode;0, always on1, quick flash2, slow flash3, turn off4, turn off all |
| ledrgb | string | Yes | led color:red，ledrgb =“ff0000”;green，ledrgb=“ff00”;blue，ledrgb=“ff”;yellow，ledrgb=“ffff00”;white，ledrgb=“ffffff”;purple，ledrgb=“ff00ff”;light blue，ledrgb= “ffff”;no color, ledrgb=“0” |
| cmdtoken | string | optional | Extended parameters, it can use as token or taskid |
| reserve | string | optional | Reserve |
Raw example：
[
{
"mac":"99.29.03.13",
"timeout":0,
"ledrgb":"ffff00",
"ledmode":0,
"buzzer":0,
"reserve":"reserve"
},
{
"mac":"99.29.05.33",
"timeout":0,
"ledrgb":"ff00ff",
"ledmode":0,
"buzzer":0,
"reserve":"reserve"
}
]
6. Callback of Light Leds Result
Introduction to the API：Notification the result of Light Leds
Basic Information：
| Attributes | Interface Message |
| Status | Finished |
| URL | URL of user's callback API |
| Request Method | POST |
| Content-Type | application/json |
Request parameters：
Parameter Description：
| Attributes | Types | Required | Comment |
| mac | string | yes | Tag mac / Tag ID |
| power | int | yes | Battery power(0~100) |
| result | bool | Yes | true ：ok；false: failed； |
Parameters example：
{"mac":"99.26.39.63","power":100,"result":true}
7. Light Roadway Lights
Introduction to the API：Light Roadway Lights all PTL tags information
Basic Information：
| Attributes | Interface Message |
| Status | Finished |
| URL | http://localhost/wms/associate/ctrlShelfIndicator |
| Request Method | POST |
| Content-Type | application/json |
Request parameters：
Parameter Description：
| Attributes | Types | Required | Comment |
| mac | string | yes | Tag mac / Tag ID |
| timeout | int | yes | Lighting timeout time(s);0 : never turn offn : turn off autoAutomatically after n seconds |
| ledrgb | string | yes | red：ff0000; red Led Ongreen：ff00；green Led Onyellow：ffff00; yellow Led On |
| ledstate | int | Yes | lightint mode;0, always on1, quick flash2, slow flash |
| buzzer | int | yes | 0：Buzzer off，1：Buzzer on |
| reserve | string | optional | reserve |
Raw example：
[
{
"mac":"99.29.03.13",
"lednum":1,
"timeout":0,
"ledrgb":"ffff00",
"ledmode":0,
"buzzer":0,
"cmdtoken":"123456",
"reserve":"reserve"
},
{
"mac":"99.29.05.33",
"lednum":1,
"timeout":0,
"ledrgb":"ff00ff",
"ledmode":0,
"buzzer":0,
"cmdtoken":"123456",
"reserve":"reserve"
}
]
Response example：true
8.Callback of Light Roadway Lights Result
Introduction to the API：Notification the result of Light Roadway Lights
Basic Information：
| Attributes | Interface Message |
| Status | Finished |
| URL | URL of user's callback API |
| Request Method | POST |
| Content-Type | application/json |
Request parameters：
Parameter Description：
| Attributes | Types | Required | Comment |
| mac | string | yes | Tag mac / Tag ID |
| result | bool | Yes | true ：ok；false: failed； |
Parameters example：
{"mac":"99.26.39.63","result":true}
9.Setting URL of user's callback API

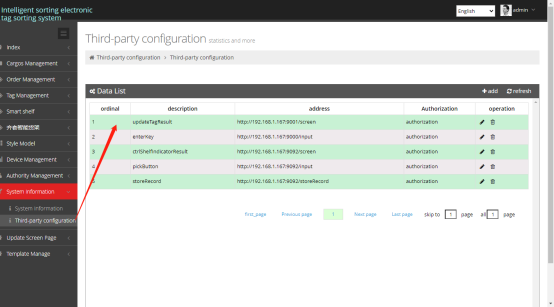

Login wms system with admin user，go to “System Information”->“Third-party configuration”，you can config the Callback URL here:
| 反馈类型 | 描述 | 地址 |
| Callback of UpdateScreen result | updateTagResult | URL of user's callback API |
| Callback of button event | enterKey | URL of user's callback API |
| Callback of Light Leds Result | ctrlShelfIndicatorResult | URL of user's callback API |
